Applied angle measuring and cutting are critical processes in woodworking. The 45-degree angle cut is especially very common as it’s the primary means to achieve 90-degree joints in woodworking and construction.
Unfortunately, measuring and cutting a 45-degree angle isn’t as straightforward as you may wish. You need special tools and a few technical skills to make an accurate 45-degree angle cut.
This guide teaches everything you need to know on how to measure and cut a 45-degree angle cut in wood.
How to Measure and Cut a 45-Degree Angle Cut in Wood?

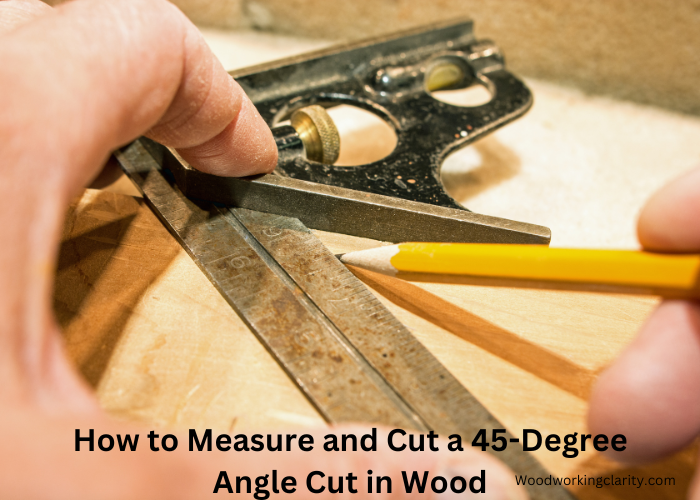

The easiest way to measure and cut a 45-degree angle cut in wood is using a combination square, and an electric miter saw. Set your combination square on the 45-degree mark and draw the cut line. Then adjust the miter saw to 45 degrees, align it to the cut line, and gently guide the saw into and through the wood.
Which Common Projects Require a 45-Degree Cut?
You need 45-degree angle cuts in many applications, from woodworking to building and construction. The following are the four most common occasions where such cuts are needed;
1. Interior trimming
Interior detailing elements on areas such as windows and doors often require mitered materials for symmetrical and seamless finishing. So, you’ll most likely need a few 45-degree angle cuts.
2. Picture frames
Picture frames are simple items that are easy to make. However, you need mitered cuts to make the frames. You certainly require 45-degree angle cuts because all frames are square or rectangular shapes that require 90-degree corners.
3. Interior and exterior cladding
Cladding is an important part of construction and decorations. An outer “skin” is applied over an existing surface for additional protection and enhanced appearance.
You certainly need 45-degree angles to join the corners and achieve weather-tightness on weatherboard joints.
You cannot make cabinets without 90-degree corners. For instance, sideboards are typically joined to the top and bottom panels at 90-degree angles. The majority of woodworkers use 45-degree angle cuts to make the 90-degree joints.
5. General furniture making
From shelves to chairs and coffee tables, most furniture items are easier to assemble with miter cuts. Although you can use other joining techniques, miter cuts are simpler, sturdier, and more optimal.
Best Measuring Tools to Measure a 45-Degree Angle
You can use hand tools or power tools to measure miter cuts; the choice is yours. Hand tools are more accurate. However, power tools are faster and more convenient. However, we recommend the following four tools;

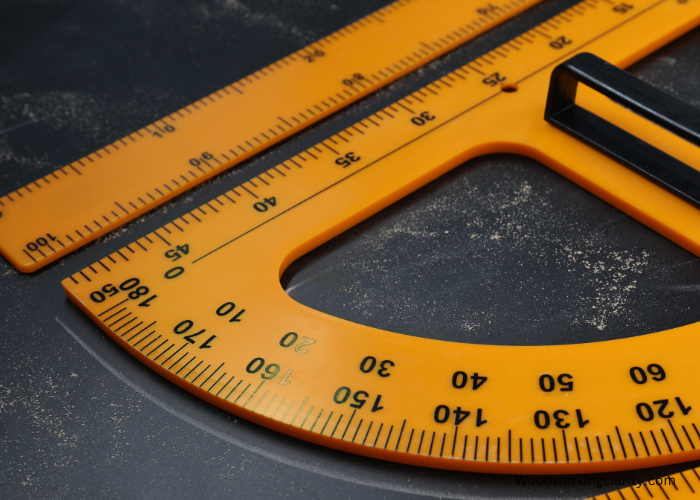

Protractors are the simplest devices used to measure and draw angles. They are generally semi-circular, though you can also find full-circle protractors.
To measure a miter cut with a protractor, place the origin (center) of the protractor over the center of the angle you want to cut. Then rotate the protractor to align with one leg of the angle, and mark the 45-degree location.
2. Sliding Bevel
Sliding bevels are often used to transfer an angle from a protractor to a working surface, such as a piece of wood. So, you can use it alongside a protractor.
First, swing the blade until the desired angle (45 degrees) is made between the bevel and the blade. Then transfer this angle to your working surface.
3. Roofing Square
Roofing squares are equipped with marks to give you the most common angles, including 90 degrees and 45 degrees.
For example, to measure and mark a 45-degree angle on a piece of wood, align the brace of the square lip against the side of the board and track the other arm until you find 45 degrees. Mark this point.
4. Digital Angle Finder
Finally, a digital angle finder helps you measure inside and outside angles. The adjustable leg holds an angle between 0-90 degrees, allowing you to repeatedly mark and guide a circular saw to make a series of angled cross cuts.
Best Tools for Cutting a 45-Degree Angle
Like measuring tools, you can choose from several different tools to cut 45-degree angles. However, we recommend the following five;
- Mitre saw: Miter saws are specialized cross-cutting tools. They easily make 45-degree cuts for various woodworking projects and are easy to set up and use.

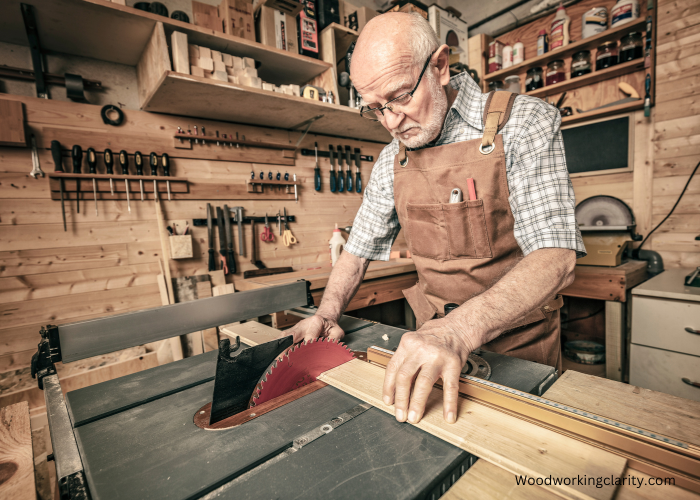

- Table saw: Table saws are exceptional for cutting straight lines. Thus, they’re perfect for ripping a miter cut along a long length. You can easily select and set the angle you want.
- Mitre box saw: Miter box saws aren’t as fast at cutting angled cuts on wood. However, you won’t find a tool to make angled cuts with greater accuracy. Moreover, it removes the manual measuring process.
- A band saw: A band saw has a flat blade that allows you to cut in curves and circles. It also makes excellent 90-degree and 45-degree angle cuts with proper adjustment.
- Circular saw: Circular saws are band saws specifically designed to make angled cuts on wood. They have finer teeth; thus, rip miter cuts almost as well as table saws.
- Hand saw: Finally, you can also turn to the timeless handsaw for miter cuttings. It’s especially handy for DIYers and smaller projects that don’t involve much work. Unfortunately, it’s not easy to make the perfect angle cut with a hand saw.
How to Measure and Cut a 45-Degree Angle Cut in Wood with Various Tools
Below we discuss how to cut 45-degree angled cuts on wood with the tools discussed above.
1. Circular saw
- Powerful 15-amp motor delivers 5 300-RPM for greater speed and faster cuts
- 7-1 4-inch carbide-tipped blade included. Spindle lock for easy blade changes.
- 51° bevel capacity with a positive stop at 45° for a wide variety of cuts
- Dust blower keeps line-of-cut free of sawdust for improved visibility
- Safety lock/guarded trigger and power-on indicator minimize accidental starts
To cut a 45-degree angle on wood with a circular saw, begin by aligning the saw blade with the cutting line. Then slide the square up to the base of the saw.
Use a clamp to secure it in place so that it doesnt come off or move around as you cut. You can now begin sawing.
2. Hand Saw
- FAST & CLEAN CUTS: The hand saw has an exclusive tooth geometry for a fast clean cut
- DURABILITY: Induction hardened teeth for a long lasting sharpness
- COMFORT: Ergonomically designed bi-material handle for comfort and control
- SQUARE & MITER: Handle offers a square & miter feature with 45-degree and 90-degree angles
Making a 45-degree cut with a hand saw isn’t very different than cutting regular wood pieces. The only difference is that you need first to measure the angle and mark it.
After marking, position the handsaw along the marking and begin cutting.
3. Miter box
- Size: 12" Mitre Box , 14" Back Saw, 45° hole slot.
- Durable: The saw blade is made of premium steel, double-sided mechanical grinding, wear-resistant, and absolutely sharp.
- Ergonomic design: The handle of the saw is made of ABS engineering plastic and TPR plastic for a comfortable grip and save labor.
- Safe to Use: The gap of the chute box is 2cm, the thickness of the saw is 1.2cm, when using the saw, the saw will not cut into the box.
- Use Tip: Use the sides of the box to line your saw up with the correct angle. Score your cut with the saw first, making sure the cut will be on the waste side of the mark. Then, proceed to use the saw normally to cut through your piece.
Cutting a 45-degree angle with a miter box is also simple. Begin by securing the miter box on a flat, level surface. We recommend using a clamp.
Once it’s secured, accurately measure and mark the angle. Then slot the saw at the angles marked 45 degrees and begin sawing.
4. Mitre saw
- MOTOR: 15 Amp motor delivers high power for the toughest of cuts generating a no-load speed of up to 5,000 RPM
- LIGHTWEIGHT: Only 24.2 lbs. to facilitate maneuverability and portability
- MITER ANGLE RANGE: 0-52 degrees, to the right and left for increased flexibility
- BEVEL RANGE: 0-45 degrees, to the left with adjustable bevel stops for precision cuts
- LARGE TABLE: Offers better material support with vice clamping system to secure work piece
A mitre saw is arguably the best tool for cutting 45-degree angles on wood. All you need to do is calibrate the saw and begin cutting.
First, use a square to ensure that the mitre blade and fence are aligned properly with no gaps. Then remove the quick release lock on the radial arm, set the angle (45 degrees), lock the blade back in place, and begin cutting.
NB: Always wear safety gloves, goggles, and a mask when sawing wood to protect yourself from sawdust and potentially harmful debris.
How do you measure a 45-degree angle without a square?
There are many ways to measure a 45-degree angle without a square. For instance, you can use a protractor, sliding bevel, or digital angle finder to measure the angle. Alternatively, use a hard piece of paper; the angle is typically 90 degrees. Fold the paper at the corner to form 45 degrees.
How do you measure a 45-degree angle without a protractor?
There are many ways to measure a 45-degree angle without a protractor. For instance, a roofer’s square does the job brilliantly, and so does a sliding bevel and digital angle finder. Of course, you can also use a compass to construct a 45-degree angle on the wood.
How do you cut a 60-degree angle?
The easiest way to cut a 60-degree angle on wood is to measure the angle using a protractor and cut it using a mitre saw. First, align the protractor’s centre with the point from where you want to cut, then locate and mark the 60-degree point. Then position the mitre saw, secure it in place, adjust the angle, ad begin sawing.
What angle do you cut to make a triangle?
The angles you need to cut to make a triangle depend on the type of triangle you desire. Is it an equilateral triangle? Right triangle? Isosceles? Or just a random triangle? An equilateral triangle has 60-degree angles at all three corners, a right-angled triangle is 90 degrees at one corner, and an isosceles triangle can have varying angles as long as two of the three angles are equal.
How to cut perfect 45-degree angles for picture frames
The easiest way to cut 45-degree angles for picture frames is with a mitre box and saw. Use the sides of the mitre box to line your saw with the correct angle. Then score the cut and begin cutting.
How to measure miter cuts for a frame
The simplest way to measure miter cuts for a frame is using a protractor. First, identify the origin of the miter/angle and position the center of the protractor over this origin.
Then, align the base of the protractor with the edge of the wood. After that, track the readings on the protractor from zero until you locate the desired angle. Mark this location, remove the protractor, and use a ruler to connect the origin to the angle mark.
It’s not too difficult to measure and cut a 45-degree angle on wood. All you need is the right measuring tool and the appropriate cutting tool.
We recommend a protractor for measuring and a miter and saw for cutting miters. Alternatively, you can measure with a roofing square and cut with a hand saw. Good luck!
